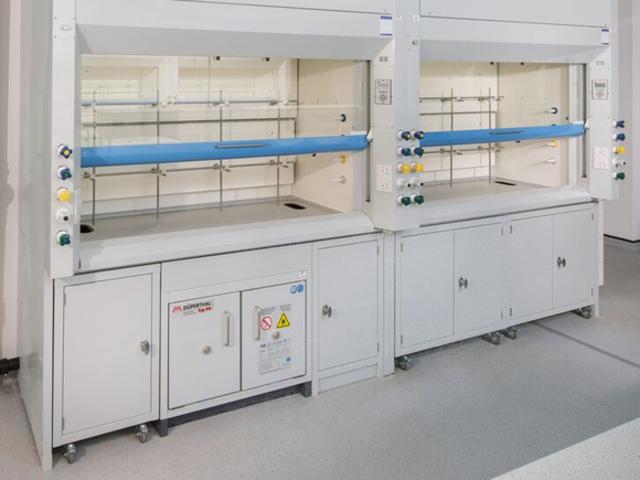

Fume hoods are a central part of each laboratory. All work with hazardous vaporous chemical substances is isolated in fume hood interior and harmful gases are safely exhausted. They are directly inflicted by the strict rules of ASHRAE 110, CE and ISO. At Bio air clean technologies we professional team will get to know your requirement and give you full support how to implement fume hoods into your laboratory.
Construction: Our fume hoods come with double wall construction made of Epoxy Coated Mild Steel or Stainless Steel as required by customer. It is ensured that the exterior is matched with the base unit. The inner walls and baffles are made of molded reinforced thermoset epoxy resins/Poly propylene that meet or exceed NFPA 45 standard on Fire protection for laboratories using chemicals. The jambs are radiuses and aerodynamically designed to reduce the turbulence as the air enters the hood. The construction materials of our fume hoods are used as mild steel, type 304 or 316 stainless steel (Epoxy Coated) High efficiency, full duty fume hood in 48”, 60”, 72” and 96” widths. Bio air clean technologies Fume Hoods are designed for energy savings & maximum user protection. The aerodynamic face opening with airfoil provides uniform air flow through the fume chamber. A constant volume low flow hood with Vector Baffle System directs the air through the fume chamber to the bell shaped exhaust collar with minimal turbulence. Requires Remote Exhaust Blower. Fume hood, non-metallic construction, total chemical and corrosion resistance, for superior durability and long life. Interior fume chamber one piece glass smooth, all coved corners for ease of cleaning. Unitized construction reduces weight for ease of installation
Main construction characteristics of fume hood:
- Structure is 1.2mm thickness cold-rolled steel with epoxy powder coating on the surface against chemical spills and corrosion.
- 12.7mm phenolic resin as worktop, anti-scratch, corrosion and high temperature resistant.
- 6mm vertical temper glass sash with opening limit and smooth moving.
- 5mm compact for interior panel and guide panel, chemical resistant.
- Underneath cabinet, 1 or 2 sets as the dimension of fume hood.
- 30W LED lamp with switch.
- Circuit breaker, electric sockets and fan switch.
-
Standard fittings
- Water tap
- Sink with drainage system
- Electrical sockets
-
Optional
- FRP coating on inner walls
- Air foil
- Scrubber system
- Storage cabinet
- Caster wheels w/ brake
- Wet & dry service valves
- Certification (ASHRAE110- 1995 / EN-14175- 2003)
- Air Flow Monitor
- Temperature indicator
- IQ/OQ/PQ
-
Available additional equipment:
- Sash with IR sensor for automatic closure
- VAV (variable airflow volume) system
- Controller with alarm and setting time
- Water supply and gas supply
- Underneath safety cabinets for flammables
- Fan
Specifications
| Inner chamber | SS 304 / 316 |
| Exterior | Power coated MS / Stainless Steel / GI |
| Work top | SS 316 / Jet black granite |
| Illumination | Fluorescent tube light |
| Blower | Centrifugal exhaust blower (direct drive motor) |
| Standard fittings |
|
| Optional |
|
